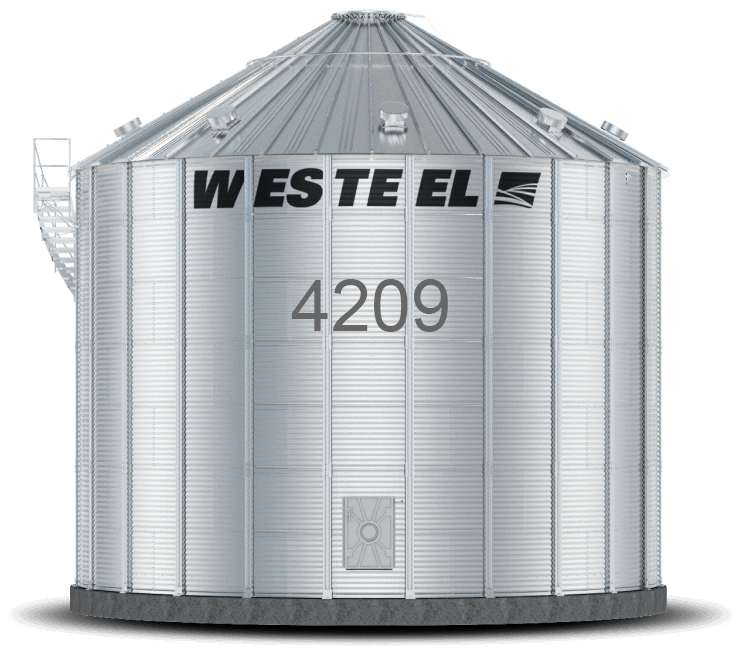

Westeel 4209

1100 Tonne Stiffened Silo

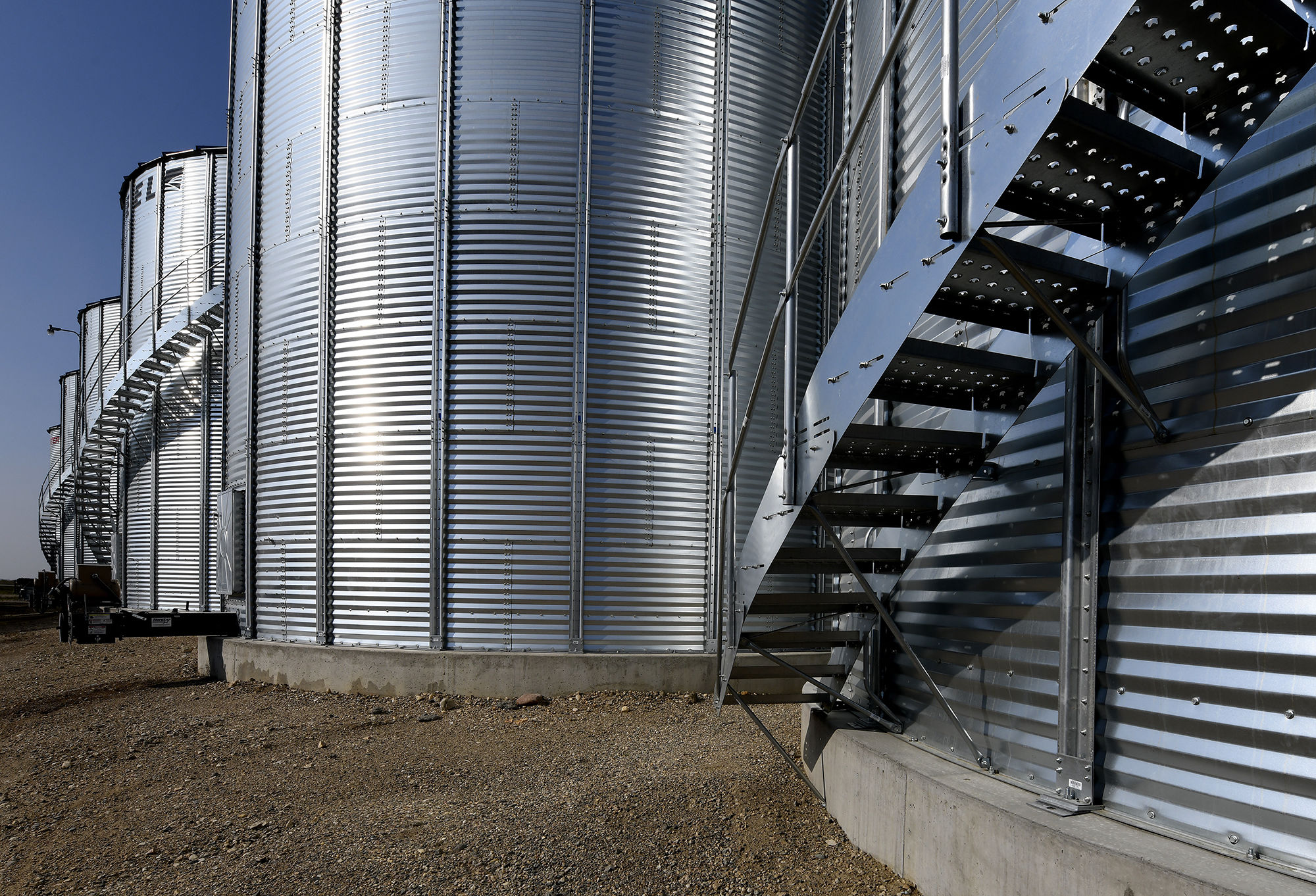

For strength, durability and long-term value, the Westeel 4209 stiffened silo is in a class of its own. With 100mm wide corrugations, and G115 galvanised steel, Westeel silos are heaver and stronger.  The Westeel wall sheets are rolled from high strength 65,000 PSI tensile steel.
Specifically engineered for exceptional sidewall strength, stiffened sidewalls are over
2½ times more efficient at achieving the maximum load possible out of each pound
of steel as compared to competitive unstiffened bins. It also features a more precise, cleaner assembly without unsightly welds for a super-tight fit.

Specifications

  • Type - Westeel Stiffened Silo
  • Capacity - 1162 Tonnes / 1431 Cubic Meters
  • Diameter - 12.73 meters / 41' 9"
  • Overall Height - 13.61 meters/ 44' 8"
  • Eave Height - 10.11 meters / 33' 2"
  • Wall Sheets - 100mm/4" Wide Corrugations with G115 Galvanised Steel
  • Stairs - Circular Stairs with rest platform and self closing gate
  • Floor - Westeel’s premium Lock-n-Load Floor Full Floor Aeration, suitable for Wheat and Canola
  • Fans - Single 20hp Centrifugal Fan producing 0.199 CFM/bu at 33' side wall height
  • Unloader - Easy Flow 7" U Trough with Emergency Gate
  • Minimum Auger Required - Westfield MKX / X10:83
